All trucks are in order of standard size bed length by crew cab (double cab).
The list below is continuously updated as newer production mid-size trucks are released and have been redesigned.
Below are the best trucks by capacity.

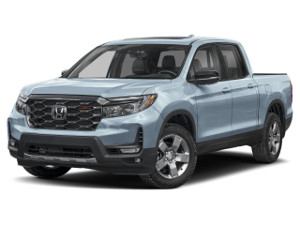

1. Honda Ridgeline 2nd Gen Bed Length 1.626m (5'4")
Honda Ridgeline comes only in crew cab form and one bed lengths of 64 inches long. Currently it is offered with one engine option only. Major dimensions:
- Total length 210.2in (5,339.08 mm), overall width w/o mirrors 78.6in (1,996.44 mm), overall height 70.8in (1,798.32 mm), wheelbase 125.2in (3,180.08 mm).
- Ground clearance 7.64in (194.06 mm).
- Legroom front/second row 40.9/36.7in (1038.86/932.18 mm) while passenger volume is 108.9 cu. ft. (3.084 m³).
- Maximum cargo bed length 5'4" (1,625.6 mm), maximum width between wheel wells is 50" (1,270 mm) while maximum bed depth height is 00" (00 mm).
- Total bed volume is 33.9 cu. ft. (0.96 m³), plus 7.3 cu ft (0.207 m³) in-bed trunk. The payload ranges from 1,583-1,509 lbs (718-684.5 kg).

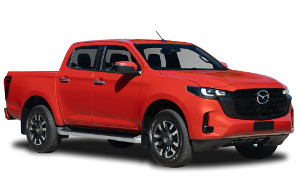

2. Mazda BT-50 3rd Gen Bed Length 1.571m (5'1.9")
Mazda BT-50 crew cab (dual cab) 4wd comes with one bed length of 61.85 inches long. It is offered in 3 different cab configurations; regular cab, extended cab and crew cab (dual cab) and three different engine options. Major dimensions:
- Total length 207.87in (5,280 mm), overall width w/o mirrors 73.6in (1,870 mm), overall height 70.28-71.26in (1,785-1,810 mm), wheelbase 123in (3,125 mm).
- Ground clearance 9.25-9.45in (235-240 mm).
- Legroom front/second row 00/00in (00/00 mm) while passenger volume is 0.0 cu. ft. (0.0 m³).
- Maximum cargo bed length 5'1.9" (1,571 mm), maximum width between wheel wells is 44.1" (1,120 mm) while maximum bed depth height is 19.3" (490 mm).
- Total bed volume is 00 cu. ft. (00 m³). The payload ranges from 2,403-2,348 lbs (1,090-1,065 kg).

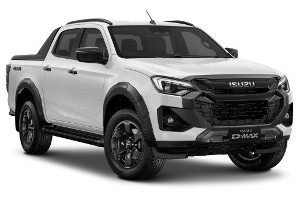

3. Isuzu D-Max 3rd Gen Bed Length 1.57m (5'1.8")
Isuzu D-Max crew cab 4wd comes with one bed length of 61.8 inches long. It is offered in 3 different cab configurations; regular cab (single cab), space cab (extended cab) and crew cab and three different engine options. Major dimensions:
- Total length 207.87-209.1in (5,280-5,310 mm), overall width w/o mirrors 73.6-75.2in (1,870-1,910 mm), overall height 70.28-71.26in (1,785-1,810 mm), wheelbase 123in (3,125 mm).
- Ground clearance 9.25-9.6in (235-244 mm).
- Legroom front/second row 42.3/35.6in (1,075/905 mm) while passenger volume is 0.0 cu. ft. (0.0 m³).
- Maximum cargo bed length 5'1.8" (1,570 mm), maximum width between wheel wells is 44.17" (1,122 mm) while maximum bed depth height is 19.3" (490 mm).
- Total bed volume is 00 cu. ft. (00 m³). The payload ranges from 2,469.2-1,975.3 lbs (1,120-896 kg).

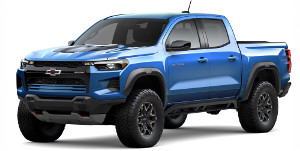

4. Chevrolet Colorado 3rd Gen (tie) Bed Length 1.567m (5'1.7")
Chevrolet Colorado comes only in crew cab form and one bed lengths of 61.7 inches long. It is offered with two different engine options. Major dimensions:
- Total length 212.69-213.21in (5,402.3-5,415.5 mm), overall width w/o mirrors 74.91-78.09in (1,902.7-1,983.5 mm), overall height 78.79-81.8in (2,003.3-2,077.7 mm), wheelbase 131.36in (3,336.5 mm).
- Ground clearance 7.9-10.73in (200.7-272.5 mm).
- Legroom front/second row 45.17/34.7in (1,147.3/881.4 mm) while passenger volume is 0.0 cu. ft. (0.0 m³).
- Maximum cargo bed length 5'1.7" (1,567.18 mm), maximum width between wheel wells is 45.5" (1,155.7 mm) while maximum bed depth height is 21.1" (535.94 mm).
- Total bed volume is 41.9 cu. ft. (1.186 m³). The payload ranges from 2,046-1,445 lbs (928.05-655.4 kg).

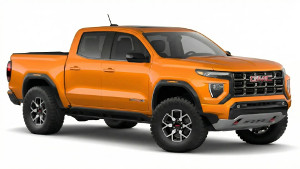

4. GMC Canyon 3rd Gen (tie) Bed Length 1.567m (5'1.7")
GMC Canyon comes only in crew cab form and one bed lengths of 61.7 inches long. It is offered with two different engine options. Major dimensions:
- Total length 213.12in (5,413.3 mm), overall width w/o mirrors 72.4in (1,838.96 mm), overall height 79.8-81.6in (2,026.9-2,072.6 mm), wheelbase 131in (3,327.4 mm).
- Ground clearance 9.6-10.7in (243.8-271.8 mm).
- Legroom front/second row 45.2/34.7in (1,148/881.4 mm) while passenger volume is 0.0 cu. ft. (0.0 m³).
- Maximum cargo bed length 5'1.7" (1,567.18 mm), maximum width between wheel wells is 45.5" (1,155.7 mm) while maximum bed depth height is 21.1" (535.94 mm).
- Total bed volume is 41.9 cu. ft. (1.186 m³). The payload ranges from 1,953-1,530 lbs (885.8-694 kg).

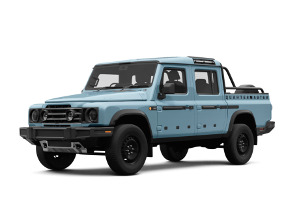

5. Ineos Grenadier Quartermaster Bed Length 1.562m (5'1.5")
Ineos Grenadier Quartermaster comes only in crew cab form and one bed lengths of 61.5 inches long. Currently it is offered with two different engine options. Major dimensions:
- Total length 212.6in (5,400 mm), overall width w/o mirrors 76.5in (1,943 mm), overall height 79.5in (2,019 mm), wheelbase 127in (3,226 mm).
- Ground clearance 10.4in (264 mm).
- Legroom front/second row 39.3/30.4in (998/772 mm) while passenger volume is 0.0 cu. ft. (0.0 m³).
- Maximum cargo bed length 5'1.5" (1,562 mm), maximum width between wheel wells is 44.7" (1,135 mm) while maximum bed depth height is 19" (483 mm).
- Total bed volume is 00 cu. ft. (00 m³). The payload 1,889 lbs (857 kg).

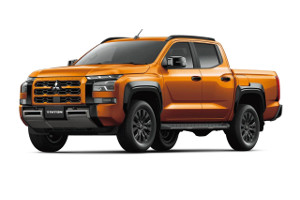

6. Mitsubishi Triton 6th Gen (tie) Bed Length 1.555m (5'1.2")
Mitsubishi Triton crew cab (double cab) 4wd comes with one bed length of 1,555mm/5’1.2”/61.2 inches long. It is offered in 3 different cab configurations; single cab (regular cab), mega cab (extended cab) and double cab (crew cab) and with four different engine options. Major dimensions:
- Total length 209.45in (5,320 mm), overall width w/o mirrors 73.43in (1,865 mm), overall height 70.67in (1,795 mm), wheelbase 123.23in (3,130 mm).
- Ground clearance 8.976in (228 mm).
- Legroom front/second row 41.69/33.74in (1,059/857 mm) while passenger volume is 0.0 cu. ft. (0.0 m³).
- Maximum cargo bed length 5'1.2" (1,555 mm), maximum width between wheel wells is 44.69" (1,135 mm) while maximum bed depth height is 20.67" (525 mm).
- Total bed volume is 00 cu. ft. (00 m³). The payload ranges from 2,414-2,271 lbs (1,095-1,030 kg).
6. Nissan Navara 4th Gen (tie) Bed Length 1.555m (5'1.2")
Nissan Navara crew cab 4wd comes with one bed length of 59.4 inches long. Currently it is offered in only dual cab (crew cab) and one engine option. Major dimensions:
- Total length 209.45in (5,320 mm), overall width w/o mirrors 73.43-75.98in (1,865-1,930 mm), overall height 70.67-71.46in (1,795-1,815 mm), wheelbase 123.23in (3,130 mm)>
- Ground clearance 8.98in (228 mm).
- Legroom front/second row 00/00in (00/00 mm) while passenger volume is 00-00 cu. ft. (00-00 m³).
- Maximum cargo bed length 5'1.2" (1,555 mm), maximum width between wheel wells is 44.69" (1,135 mm) while maximum bed depth height is 20.67" (525 mm).
- Total bed volume is 00 cu. ft. (00 m³). The payload ranges from 2,346-2,125 lbs (1,064-964 kg).

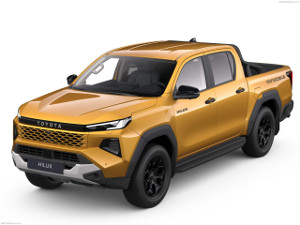

6. Toyota Hilux 9th Gen (tie) Bed Length 1.555m (5’1.2”)
Toyota Hilux double-cab (crew cab) 4wd comes with one bed lengths 61.2 inches (1,555 mm) long. It is offered in 3 different cab configurations; single-cab (cab-chassis only), extra-cab (cab-chassis only) and double-cab (crew cab) in pick-up and cab-chassis with two engine and battery electric option. Major dimensions:
- Total length-209.45" (5,320 mm), overall width w/o mirrors-73.03"-74.2" (1,855-1,885 mm), overall height 72.76"-73.42" (1,848-1,865 mm), wheelbase-121.46" (3,085 mm).
- Ground clearance--00in (00 mm).
- Legroom front/second row 00/00in (00/00 mm) while passenger volume is 0 cu. ft. (0 m³).
- Maximum cargo bed length 00" (00 mm), maximum width between wheel wells is 00" (00 mm) while maximum bed depth height is 00" (00 mm).
- Total bed volume is 00 cu. ft. (00 m³). The payload ranges from 00 lbs (00 kg).

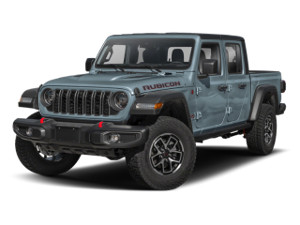

7. Jeep Gladiator (tie) Bed Length 1.532m (5'0.3")
Jeep Gladiator (JT) comes only in crew cab form and one bed lengths of 60.3 inches long. It is offered with two different engine options. It is also only truck that is offered in convertible form. Major dimensions:
- Total length 218in (5,537 mm), overall width w/o mirrors 73.8in (1,875 mm), overall height 75-76.1in (1,905-1,933 mm), wheelbase 137.3in (3,483 mm).
- Ground clearance 10-11.6in (254-295 mm).
- Legroom front/second row 41.2/38.3in (1,046/973 mm) while passenger volume is 103 cu. ft. (2.917 m³).
- Maximum cargo bed length 5'0.3" (1,532 mm), maximum width between wheel wells is 44.8" (1,138 mm) while maximum bed depth height is 33.9" (861 mm).
- Total bed volume is 35.5 cu. ft. (1.005 m³). The payload ranges from 1,720-1,025 lbs (780-465 kg).

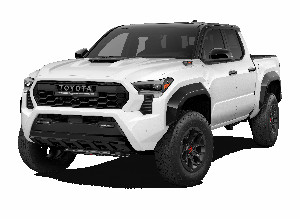

7. Toyota Tacoma 4th Gen (tie) Bed Length 1.532m (5'0.3")
Toyota Tacoma crew cab 4wd comes with two different bed lengths. Standard bed length is 60.3 inches (1,532 mm) long while extended bed is 73.5 inches (1,867 mm) long. It is offered in 2 different cab configurations; regular cab and crew cab and with three different engine options. Major dimensions:
- Total length 213-214.2in (5,410-5,440 mm), overall width w/o mirrors 76.9-79.9in (1,953-2,029 mm), overall height 73.8-75.8in (1,874-1,925 mm), wheelbase 131.9in (3,350 mm).
- Ground clearance 9.9-11.5in (251-292 mm).
- Legroom front/second row 41.8/33.7in (1,061/856 mm) while passenger volume is 0.0 cu. ft. (0.0 m³).
- Maximum cargo bed length 5'0.3" (1,532 mm), maximum width between wheel wells is 44.7" (1,135 mm) while maximum bed depth height is 21.2" (538 mm).
- Total bed volume is 00 cu. ft. (00 m³). The payload ranges from 1,705-1,380 lbs (773.38-626 kg).

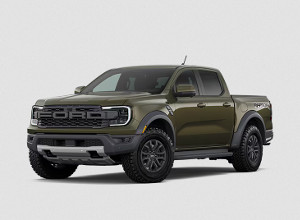

8. Ford Ranger 5th Gen (US version) Bed Length 1.514m (4'11.6")
Ford Ranger crew cab 4x4 US-version comes with only one bed length of 59.6 inches (1,514 mm) long. Internationally it is offered in 3 different cab configurations; single cab (regular cab), super cab (extended cab) and crew cab (double cab) - as well as seven engine options worldwide. Major dimensions:
- Total length US version 210.6-210.9in (5,349-5,357 mm) while international version 211.4-211.8in (5,370-5,380 mm), overall width w/o mirrors US version 75.5-79.8in (1,918-2,027 mm) international version 75.2-79.84in (1,910-2,028 mm), overall height US version 74.4-75.9in (1,890-1,928 mm) international version 73.66-75.83in (1,871-1,926 mm), wheelbase US version 128.7in (3,269 mm) international version 128.74in (3,270 mm).
- Ground clearance US version 9.3-10.7in (236-272 mm) international version 8.8-10.7in (224-272 mm).
- Legroom front/second US version row 43.2/34.6in (1,097/879 mm) international version 41.6/34.6in (1,057/879 mm), while passenger volume is 0.0 cu. ft. (0.0 m³).
- Maximum cargo bed length US version 4'11.6" (1,514 mm) international version 4'9.64"-5'0.9" (1,464-1,547 mm), maximum width between wheel wells is US version 48.2" (1,224 mm) international version 47.9-48.2" (1,217-1,224 mm), while maximum bed depth height US version is 20.8" (528 mm) international version 20.67"-20.83" (525-529 mm).
- US version total bed volume is 43.5 cu. ft. (1.232 m³). The payload ranges for US version from 1,763-1,373 lbs (799.7-622.8 kg) while international version ranges from 2,749-1,580 lbs (1,247-717 kg).

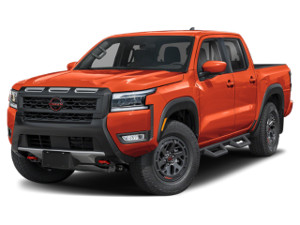

9. Nissan Frontier 3rd Gen Bed Length 1.5113m (4'11.5")
Nissan Frontier crew cab 4wd comes with two different bed lengths. Standard bed length is 59.5 inches (1,511.3 mm) long, while extended bed is 73.3 inches (1861.82 mm) long with bed volume 49.2 cu. ft. (1.393 m³). It is offered in 2 different cab configurations; king cab (extended cab) and crew cab and with one engine option. Major dimensions:
- Total length 210.2in (5,339.08 mm), overall width w/o mirrors 73-74.7in (1,854.2-1,897.38 mm), overall height 72-72.9in (1,828.8-1,851.66 mm), wheelbase 126in (3,200 mm).
- Ground clearance 8.6-9.5in (218-241 mm).
- Legroom front/second row 42.3/33.2in (1,074/843 mm) while passenger volume is 98.9-100.1 cu. ft. (2.8-2.835 m³).
- Maximum cargo bed length 4'11.5" (1,511.3 mm), maximum width between wheel wells is 44.5" (1,130 mm) while maximum bed depth height is 19.4" (493 mm).
- Total bed volume is 40.1 cu. ft. (1.136 ). The payload ranges from 1,330-1,220 lbs (603.3-553.4 kg).

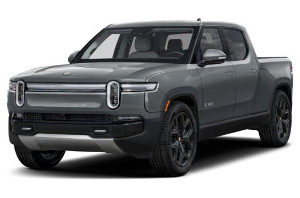

10. Rivian R1T Bed Length 1.377m (4'6.2")
Rivian R1T truck comes only in crew cab form with awd and one bed lengths of 54.2 inches (1,377 mm) long. It is battery electric that is offered with 3 different power-train. Major dimensions:
- Total length 217.1in (5,514 mm), overall width w/o mirrors 82in (2,083 mm), overall height 72.7-78.2in (1,847-1,986 mm), wheelbase 135.8in (3,449 mm).
- Ground clearance 7.9-14.6in (201-371 mm).
- Legroom front/second row 41.4/36.6in (1,052/930 mm) while passenger volume is 107 cu. ft. (3.03 m³).
- Maximum cargo bed length 4'6.2" (1,377 mm), maximum width between wheel wells is 50.2" (1,275 mm) while maximum bed depth height is 18.3" (465 mm).
- Total bed volume is 29.2 cu. ft. (0.827 m³), plus 14.3 cu ft (0.405 m³) in-bed trunk. The payload ranges from 2,116-1,669 lbs (960-757 kg).
Compact trucks

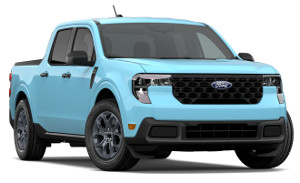

-- Ford Maverick Bed Length 1.382m (4'6.4")
Ford Maverick with awd comes only in crew cab body style and one bed lengths of 54.4 inches (1,382 mm) long. It is offered with 2 different engines. Major dimensions:
- Total length 199.8-200.9in (5,075-5,103 mm), overall width w/o mirrors 72.6in (1,844 mm), overall height 68.3-69.4in (1,735-1,763 mm), wheelbase 121.1in (3,076 mm).
- Ground clearance 7.4-9.1in (188-231 mm).
- Legroom front/second row 42.8/35.9-36.9in (1,087/912-937 mm) while passenger volume is 100.3 cu. ft. (2.84 m³).
- Maximum cargo bed length 4'6.4" (1,382 mm), maximum width between wheel wells is 42.6" (1,082 mm) while maximum bed depth height is 20.3" (516 mm).
- Total bed volume is 33.3 cu. ft. (0.943 m³). The payload ranges from 1,500-1,045 lbs (680-474 kg).

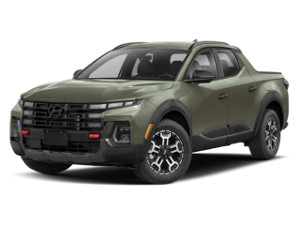

-- Hyundai Santa Cruz Bed Length 1.323m (4'4.1")
Hyundai Santa Cruz with awd comes only in crew cab shape and one bed lengths of 52.1 inches (1,323 mm) long. It is offered with 2 different engine powers. Major dimensions:
- Total length 195.7-195.9in (4,971-4,976 mm), overall width w/o mirrors 75in (1,905 mm), overall height 66.7in (1,694 mm), wheelbase 118.3in (3,005 mm).
- Ground clearance 00in (00 mm).
- Legroom front/second row 41.4/36.5in (1,052/927 mm) while passenger volume is 101.8 cu. ft. (2.883 m³).
- Maximum cargo bed length 4'4.1" (1,323 mm), maximum width between wheel wells is 42.7" (1,085 mm) while maximum bed depth height is 19.2" (488 mm).
- Total bed volume is 27 cu. ft. (0.765 m³). Total payload is 1,411 lbs (640 kg).
