Best Vans by Cargo

Last updated: July 2, 2026

All cargo vans are by order for maximum capacity

The list below is continuously updated as newer production cargo vans are released and have been redesigned.

Below are the best cargo vans by capacity.

1. Iveco Daily 70C H3 LW 692.17 cu.ft. (19.6 m³)

Daily 70C H3 LW major dimensions:

  • Total length 302.4" (7,680 mm), overall width w/o mirrors 00" (00 mm), overall height 00" (00 mm), wheelbase 161.4" (4,100 mm).
  • Ground clearance --in (-- mm).
  • Legroom front row --in (-- mm).
  • Maximum cargo area length 201.8" (5,125 mm), maximum width between wheel wells is --" (-- mm) while maximum cargo height is --" (-- mm). It is front wheels drive.

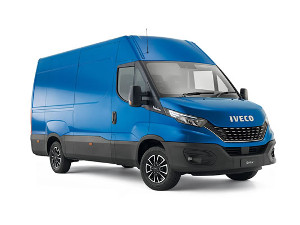

Iveco Daily

Other smaller cargo sizes options:

  • 635.66 cu.ft. (18 m³) or 565 cu.ft. (16 m³) with cargo length 184.3" (4,680 mm).
  • 618 cu.ft. (17.5 m³) with cargo length 201.8" (5,125 mm).
  • 473 cu.ft. (13.4 m³) or 423 cu.ft. (12 m³) with cargo length 139.4" (3,540 mm).
  • 381.4 cu.ft (10.8 m³) or 317.8 cu.ft (9 m³) with cargo length 123.2" (3,130 mm).
  • 258 cu.ft. (7.3 m³) with cargo length 102.76" (2,610 mm).

2. Rivian Delivery 700 652 cu.ft. (18.5 m³)

Delivery 700 major dimensions:

  • Total length 278" (7,061 mm), overall width w/o mirrors 87.2" (2,215 mm), overall height 114.8" (2,917 mm), wheelbase 187" (4,750 mm).
  • Ground clearance 6.9-7.4in (175.3-188 mm).
  • Legroom front row --in (-- mm).
  • Maximum cargo area length 166.8" (4,237 mm), maximum width between wheel wells is 56.2" (1,428 mm) while maximum cargo height is 79.3" (2,015 mm). It is front wheels drive.

Rivian 700

Other smaller cargo size option:

  • Delivery 500 487 cu.ft. (13.8 m³) exterior dimensions: total length-248.5" (6,311 mm), overall width w/o mirrors-80.1" (2,035 mm), overall height-114.7" (2,914 mm), wheelbase-157.5" (4000 mm), ground clearance-6.7-7.1in (170.2-181 mm). Maximum cargo area length-137.3" (3,487 mm), maximum width between wheel wells is 49.1" (1,248 mm) while maximum cargo height is 79.3" (2,015 mm).

3. Volkswagen Crafter CR35 LWB-Maxi Super-HR FWD 649.79 cu.ft. (18.4 m³)

Crafter CR35 LWB-Maxi Super-HR major dimensions:

  • Total length 291" (7,391 mm), overall width w/o mirrors 80.3" (2,040 mm), overall height 110.2" (2,798 mm), wheelbase 176.77" (4,490 mm).
  • Ground clearance --in (-- mm).
  • Legroom front row --in (-- mm).
  • Maximum cargo area length 181.34" (4,606 mm), maximum width between wheel wells is 54.33" (1,380 mm) while maximum cargo height is 86.46" (2,196 mm). It is front, rear and all wheels drive option system.

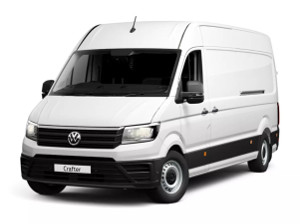

Volkswagen Crafter

Other smaller cargo sizes options:

  • CR50 LWB-Maxi Super-HR RWD/AWD 618 cu.ft. (17.5 m³) with maximum cargo area length-181.34" (4,606 mm), maximum width between wheel wells is DRW 40.55" (1,030 mm) while maximum cargo height is 82.5" (2,096 mm).
  • CR35 LWB-Maxi HR FWD 579.2 cu.ft. (16.4 m³) with maximum cargo area length-181.34" (4,606 mm), maximum width between wheel wells is 54.33" (1,380 mm) while maximum cargo height is 77.2" (1,961 mm).
  • CR35 LWB-Maxi Super-HR FWD 568.6 cu.ft. (16.1 m³) with maximum cargo area length-159.5" (4,051 mm), maximum width between wheel wells is 54.33" (1,380 mm) while maximum cargo height is 86.2" (2,189 mm).
  • CR35 & CR50 LWB-Maxi Super-HR RWD/AWD 547.4 cu.ft. (15.5 m³) with maximum cargo area length-181.34" (4,606 mm), maximum width between wheel wells is SRW/DRW 54.33/40.55" (1,380/1,030 mm) while maximum cargo height is 73.3" (1,861 mm).
  • CR35 & CR50 LWB Super-HR RWD/AWD 540.3 cu.ft. (15.3 m³) with maximum cargo area length-159.9" (4,051 mm), maximum width between wheel wells is SRW/DRW 54.33/40.55" (1,380/1,030 mm) while maximum cargo height is 82.2" (2,089 mm).
  • CR35 LWB HR FWD 508.5 cu.ft. (14.4 m³) with maximum cargo area length-159.9" (4,051 mm), maximum width between wheel wells is 54.33" (1,380 mm) while maximum cargo height is 77.2" (1,961 mm).
  • CR35 & CR50 LWB HR RWD/AWD 480.3 cu.ft. (13.6 m³) with maximum cargo area length-159.9" (4,051 mm), maximum width between wheel wells is SRW/DRW 54.33/40.55" (1,380/1,030 mm) while maximum cargo height is 73.3" (1,861 mm).
  • CR50 MWB HR RWD/AWD 480.3 cu.ft. (13.6 m³) with maximum cargo area length-126" (3,201 mm), maximum width between wheel wells is DRW 40.55" (1,030 mm) while maximum cargo height is 73.3" (1,861 mm).
  • CR30/35 MWB HR FWD 377.9 cu.ft. (10.7 m³) with maximum cargo area length-126" (3,201 mm), maximum width between wheel wells is 54.33" (1,380 mm) while maximum cargo height is 77.2" (1,961 mm).
  • CR30/35 MWB LR FWD 349.6 cu.ft. (9.9 m³) with maximum cargo area length-126" (3,201 mm), maximum width between wheel wells is 54.33" (1,380 mm) while maximum cargo height is 68" (1,726 mm).
  • CR30/35 MWB HR RWD/AWD 328.4 cu.ft. (9.3 m³) with maximum cargo area length-126" (3,201 mm), maximum width between wheel wells is 54.33" (1,380 mm) while maximum cargo height is 73.3" (1,861 mm).
  • CR30/35 MWB LR RWD/AWD 328.4 cu.ft. (9.3 m³) with maximum cargo area length-126" (3,201 mm), maximum width between wheel wells is 54.33" (1,380 mm) while maximum cargo height is 64" (1,626 mm).

4. Chevrolet BrightDrop 600 614.7 cu.ft. (17.4 m³)

BrightDrop 600 major dimensions:

  • Total length 290" (7,366 mm), overall width w/o mirrors 86.52" (2,197.6 mm), overall height 108.87" (2,765.3 mm), wheelbase 183.5" (4,660 mm).
  • Ground clearance 7.51in (191 mm).
  • Legroom front row --in (-- mm).
  • Maximum cargo area length 168.9" (4,290 mm), maximum width between wheel wells is 53.53" (1,360 mm) while maximum cargo height is 76" (1,930 mm). It is front or all wheels drive system.

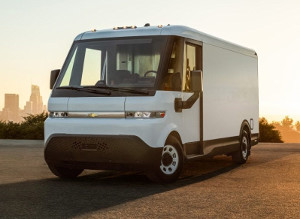

Chevrolet BrightDrop

Other smaller cargo size option:

  • BrightDrop 400 412.1 cu.ft. (11.67 m³) exterior dimensions: total length-238.61" (6,660.7 mm), overall width w/o mirrors-00" (00 mm), overall height-109.15-109.2" (2,772-2,774 mm), wheelbase-153.15" (3,886 mm), ground clearance-6.98-7in (177-178 mm). Maximum cargo area length-117.51" (2.985 mm), maximum width between wheel wells is 54.71" (1,390 mm) while maximum cargo height is 76" (1,930 mm).

5. Renault Master HR ELWB (L4H3) RWD 600.4 cu.ft. (17 m³)

Master HR ELWB RWD major dimensions:

  • Total length 270.67" (6,875 mm), overall width w/o mirrors 81.5 (2,070 mm), overall height 110.83" (2,815 mm), wheelbase 170.55" (4,332 mm).
  • Ground clearance 6.58in (167 mm).
  • Legroom front row --in (-- mm).
  • Maximum cargo area length 172.56" (4,383 mm), maximum width between wheel wells is 54.3” (1,380 mm) while maximum cargo height is 80.63" (2,048 mm). It offered in rear or front wheels drive system.

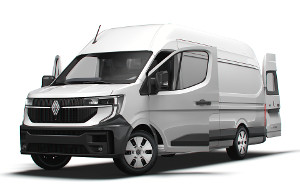

Renault Master

Other smaller cargo size option:

  • MR ELWB 170.55" RWD 526.2 cu.ft. (14.9 m³) with maximum cargo area length-172.56" (4,383 mm), maximum width between wheel wells is 54.3" (1,380 mm) while maximum cargo height is 70.8" (1,798 mm).
  • HR ELWB 170.55” RWD DRW(TW) 501.5 cu.ft. (14.2 m³) with maximum cargo area length-172.56" (4,380 mm), maximum width between wheel wells is 42.5" (1,080 mm) while maximum cargo height is 80.63" (2,048 mm).
  • MR 170.55" ELWB FWD 459 cu.ft. (13 m³) with maximum cargo area length-146.97" (3,733 mm), maximum width between wheel wells is 54.3" (1,380 mm) while maximum cargo height is 74.57" (1,894 mm).
  • HR 144.96" LWB FWD 434.4 cu.ft. (12.3 m³) with maximum cargo area length-121.4" (3,083 mm), maximum width between wheel wells is 54.3" (1,380 mm) while maximum cargo height is 84.4" (2,144 mm).
  • MR 144.96” LWB FWD 381.4 cu.ft. (10.8 m³) with maximum cargo length-121.4” (3,083 mm), maximum width between wheel wells is 54.3” (1,380 mm) while maximum cargo height is 74.57” (1,894 mm).
  • MR 125.28” SWB FWD 317.8 cu.ft. (9 m³) with maximum cargo length-101.69” (2,583 mm), maximum width between wheel wells is 54.3” (1,380 mm) while maximum cargo height is 74.57” (1,894 mm).
  • LR 125.28" SWB FWD 282.5 cu.ft. (8 m³) with maximum cargo area length-101.69" (2,583 mm), maximum width between wheel wells is 54.3" (1,380 mm) while maximum cargo height is 66.9" (1,700 mm).

6. Ford Transit HR Long-EL 536.4 cu.ft. (15.2 m³)

Transit HR Long-EL major dimensions:

  • Total length 263.9" (6,703.1 mm), overall width w/o mirrors SRW/DRW 81.3/83.7" (2,065/2,126 mm), overall height 110.4" (2,804.2 mm), wheelbase 148" (3,759 mm).
  • Ground clearance --in (-- mm).
  • Legroom front row 39.7in (1,008.4 mm).
  • Maximum cargo area length 172.2" (4,373.9 mm), maximum width between wheel wells is SRW/DRW 54.8/45.4" (1,391.9/1,153.2 mm) while maximum cargo height is 81.5" (2,070 mm). It is rear or all wheels drive system.

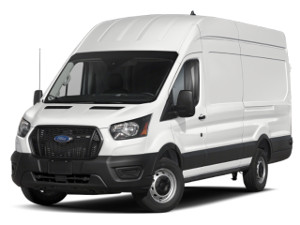

Ford Transit HR Long-EL

Other smaller cargo size option:

  • HR Long 453.4 cu.ft. (12.84 m³) with maximum cargo area length-143.7" (3,650 mm), maximum width between wheel wells is 54.8" (1,391.9 mm) while maximum cargo height is 81.5" (2,070 mm).
  • MR Long 400.5 cu.ft. (11.34 m³) with maximum cargo area length-143.7" (3,650 mm), maximum width between wheel wells is 54.8" (1,391.9 mm) while maximum cargo height is 72" (1,828.8 mm).
  • LR Long 311.9 cu.ft. (8.83 m³) with maximum cargo area length-143.7" (3,650 mm), maximum width between wheel wells is 54.8" (1,391.9 mm) while maximum cargo height is 56.9" (1,445.3 mm).
  • MR Regular wheelbase 358.7 cu.ft. (10.2 m³) with maximum cargo area length-126" (3,200.4 mm), maximum width between wheel wells is 54.8" (1,391.9 mm) while maximum cargo height is 72" (1,828.8 mm).
  • LR Regular wheelbase 280.9 cu.ft. (8 m³) with maximum cargo area length-126" (3,200.4 mm), maximum width between wheel wells is 54.8" (1,391.9 mm) while maximum cargo height is 56.9" (1,445.3 mm).

7. Mercedes-Benz Sprinter HR 170" Extended 533 cu.ft. (15.1 m³)

Sprinter HR 170" Extended major dimensions:

  • Total length 290" (7,366 mm), overall width w/o mirrors 00" (00 mm), overall height 111" (2,819.4 mm), wheelbase 170" (4,318 mm).
  • Ground clearance --in (-- mm).
  • Legroom front row --in (-- mm).
  • Maximum cargo area length 189" (4,801 mm), maximum width between wheel wells is 53" (1,346.2 mm) while maximum cargo height is 79" (2,007 mm). It is rear or all wheels drive system.

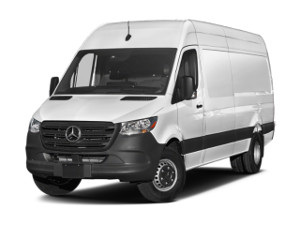

Mercedes-Benz Sprinter

Other smaller cargo size option:

  • HR 170" Extended DRW 469 cu.ft. (13.3 m³) with maximum cargo area length-189" (4,801 mm), maximum width between wheel wells is 39" (990.6 mm) while maximum cargo height is 79" (2,007 mm).
  • HR 170" 488 cu.ft. (13.8 m³) with maximum cargo area length-174" (4,420 mm), maximum width between wheel wells is 53" (1,346.2 mm) while maximum cargo height is 79" (2,007 mm).
  • HR 170" DRW 430 cu.ft. (12.2 m³) with maximum cargo area length-174" (4,420 mm), maximum width between wheel wells is 39" (990.6 mm) while maximum cargo height is 79" (2,007 mm).
  • HR 144" 374 cu.ft. (10.6 m³) with maximum cargo area length-133" (3,378.2 mm), maximum width between wheel wells is 53" (1,346.2 mm) while maximum cargo height is 79" (2,007 mm).
  • HR 144" 329 cu.ft. (9.3 m³) with maximum cargo area length-133" (3,378.2 mm), maximum width between wheel wells is 39" (990.6 mm) while maximum cargo height is 79" (2,007 mm).
  • Standard Roof 144" 319 cu.ft. (9.03 m³) with maximum cargo area length-133" (3,378.2 mm), maximum width between wheel wells is 53" (1,346.2 mm) while maximum cargo height is 68" (1,727 mm).
  • Standard Roof 144" 281 cu.ft. (8 m³) with maximum cargo area length-133" (3,378.2 mm), maximum width between wheel wells is 39" (990.6 mm) while maximum cargo height is 68" (1,727 mm).

8. Ram ProMaster Super HR 159" WB EXT 524 cu.ft. (14.84 m³)

ProMaster Super HR 159" WB EXT major dimensions:

  • Total length 250.6" (6,365.2 mm), overall width w/o mirrors 80.3" (2,040 mm), overall height 00" (00 mm), wheelbase 159" (4,038.6 mm).
  • Ground clearance --in (-- mm).
  • Legroom front row 38.8in (985.5 mm).
  • Maximum cargo area length 160.2" (4,069 mm), maximum width between wheel wells is 55.8" (1,417.3 mm) while maximum cargo height is 86" (2,184.4 mm). It is front wheels drive system.

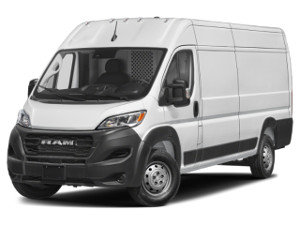

RAM Promaster 3500

Other smaller cargo size option:

  • HR 159" WB EXT 463 cu.ft. (13.1 m³) with maximum cargo area length-160.2" (4,069 mm), maximum width between wheel wells is 55.8" (1,417.3 mm) while maximum cargo height is 76" (1,930.4 mm).
  • HR 159" WB 420 cu.ft. (11.9 m³) with maximum cargo area length-145.9" (3,705.9 mm), maximum width between wheel wells is 55.8" (1,417.3 mm) while maximum cargo height is 76" (1,930.4 mm).
  • HR 136" WB 353 cu.ft. (10 m³) with maximum cargo area length-122.8" (3,119 mm), maximum width between wheel wells is 55.8" (1,417.3 mm) while maximum cargo height is 76" (1,930.4 mm).
  • LR 136" WB 304 cu.ft. (8.6 m³) with maximum cargo area length-122.8" (3,119 mm), maximum width between wheel wells is 55.8" (1,417.3 mm) while maximum cargo height is 65.4" (1,661.2 mm).
  • LR 118" WB 259 cu.ft. (7.3 m³) with maximum cargo area length-105.1" (2,670 mm), maximum width between wheel wells is 55.8" (1,417.3 mm) while maximum cargo height is 65.4" (1,661.2 mm).

9. Hyundai H350 HR 144.49" LWB 455.6 cu.ft. (12.9 m³)

H350 HR 144.49" LWB major dimensions:

  • Total length 243.9" (6,195 mm), overall width w/o mirrors 80.2" (2,038 mm), overall height 105.9" (2,690 mm), wheelbase 144.49" (3,670 mm).
  • Ground clearance 7.28in (185 mm).
  • Legroom front row --in (-- mm).
  • Maximum cargo area length 148.82" (3,780 mm), maximum width between wheel wells is 54.33" (1,380 mm) while maximum cargo height is 77" (1,956 mm). It is rear wheels drive system.

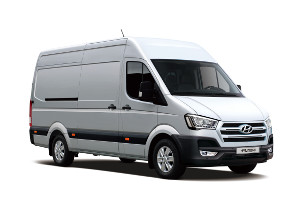

Hyundai H350

Other smaller cargo size option:

  • HR 135.2" SWB 370.8 cu.ft. (10.5 m³) exterior dimensions: total length-217.1" (5,515 mm), overall width w/o mirrors-80.2" (2,038 mm), overall height-105.71" (2,685 mm), wheelbase-135.2" (3,435 mm), ground clearance-7.28in (185 mm). Maximum cargo area length-122.1" (3,100 mm), maximum width between wheel wells is 54.33" (1,380 mm) while maximum cargo height is 77" (1,956 mm).
